Specifications

Cast Aluminum Weld-Ons

vacuum rating	30 inches hg
psi rating	2 & 3 inch = 290
	4 - 8 inch = 175

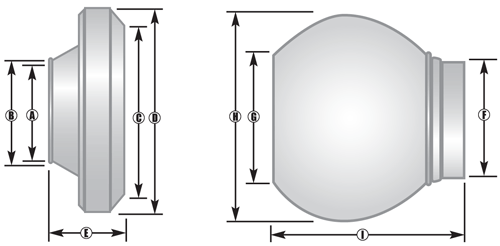

male mechanical specs.	A	B	C	D	E	F	G	H	I
2" Aluminum Weld-On	2.01	2.28	2.80	3.54	1.42	2.36	1.89	2.80	2.32
3" Aluminum Weld-On	3.01	3.35	3.88	4.88	1.65	3.39	2.99	3.86	3.15
4" Aluminum Weld-On	4.02	4.41	5.67	6.69	2.20	4.37	4.21	5.67	4.41
5" Aluminum Weld-On	5.04	5.35	5.98	7.72	2.36	5.31	4.88	6.26	5.20
6" Aluminum Weld-On	6.04	6.42	7.13	8.50	2.44	6.38	5.55	7.09	5.39
8" Aluminum Weld-On	8.01	8.86	9.13	10.71	3.27	8.39	7.72	9.06	6.46
Hose Set Specifications to 1/100th of an inch \| Specifications Subject to Change

TECH TIP

Wil-loc Aluminum fittings are completely interchangeable with Wil-loc Galvanized steel or Stainless steel fittings. For certain applications, where weight is a concern, aluminum fittings may be the best solution.

Wil-loc Aluminum Weld-Ons are manufactured using a mold cast aluminum process, producing a high quality, consistent part that welds quickly and easily to aluminum pipe or components.
